Fab Tree Hab

Studio: Terreform ONE

Team: Avantika Velho, Mitchell Joachim (PI), Vivian Kuan, Claudia D'Auria, Nicholas Lynch, Mamoun Friedrich-Grosvenor, Grace Morenko, River Prud’Homme, Brook Boughton.

My Role: As the biodesigner on the team I led material R&D for the facade modules. I also played a major role in the design, fabrication installation, and documentation of the project from start to finish.

2022-24

New Windsor, NY, USA

The Fab Tree Hab is an extension of its surrounding ecosystem, a terrestrial reef made from native willow trees that play host to humans and nonhumans. As dynamic as a forest, the structure is an embodiment of 100% living matter, upending human-centered and energy-intensive construction practices. This is a maximal positive contribution model, it is not about efficiency or net zero. We are not cutting down trees to make a building. Instead, we are actively growing more trees, enmeshed in a shaped geometry for programmatic use. Sourced from a local biomass farm, tree clusters are shaped on-site within large reusable timber scaffolds. After five year’s growth, the trees support the modular multispecies wall system. Wall components are made from handmade crocheted jute fibers and 3D-printed bioplastic volumes. These serve as micro-habitats and food webs for flora and fauna to greatly increase biodiversity. The structure takes a socio-ecological approach to architecture, serving as an observatory and education center for people and providing a wildlife refuge.

Fab Tree Hab: Alive Architecture Video 2023

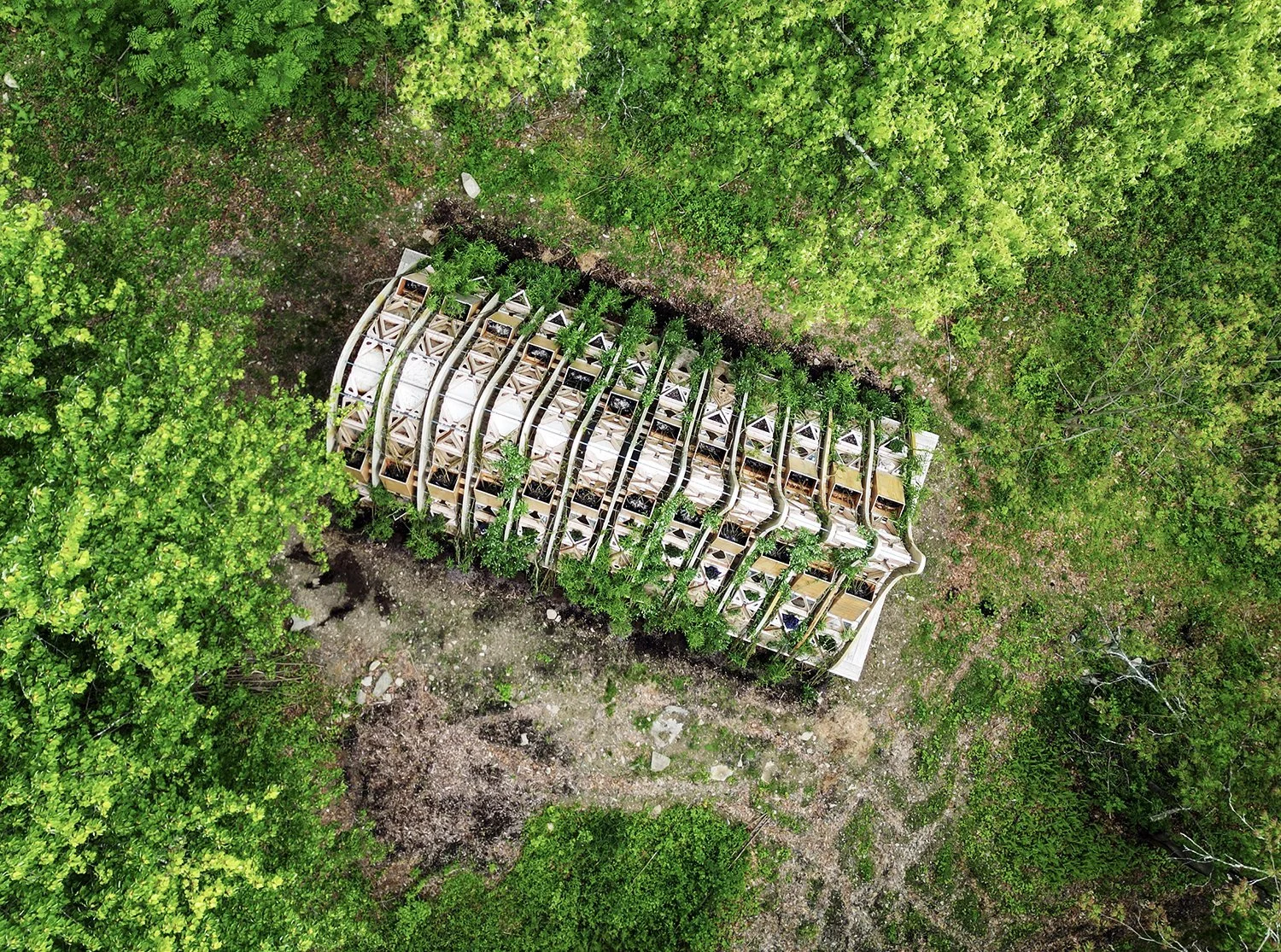

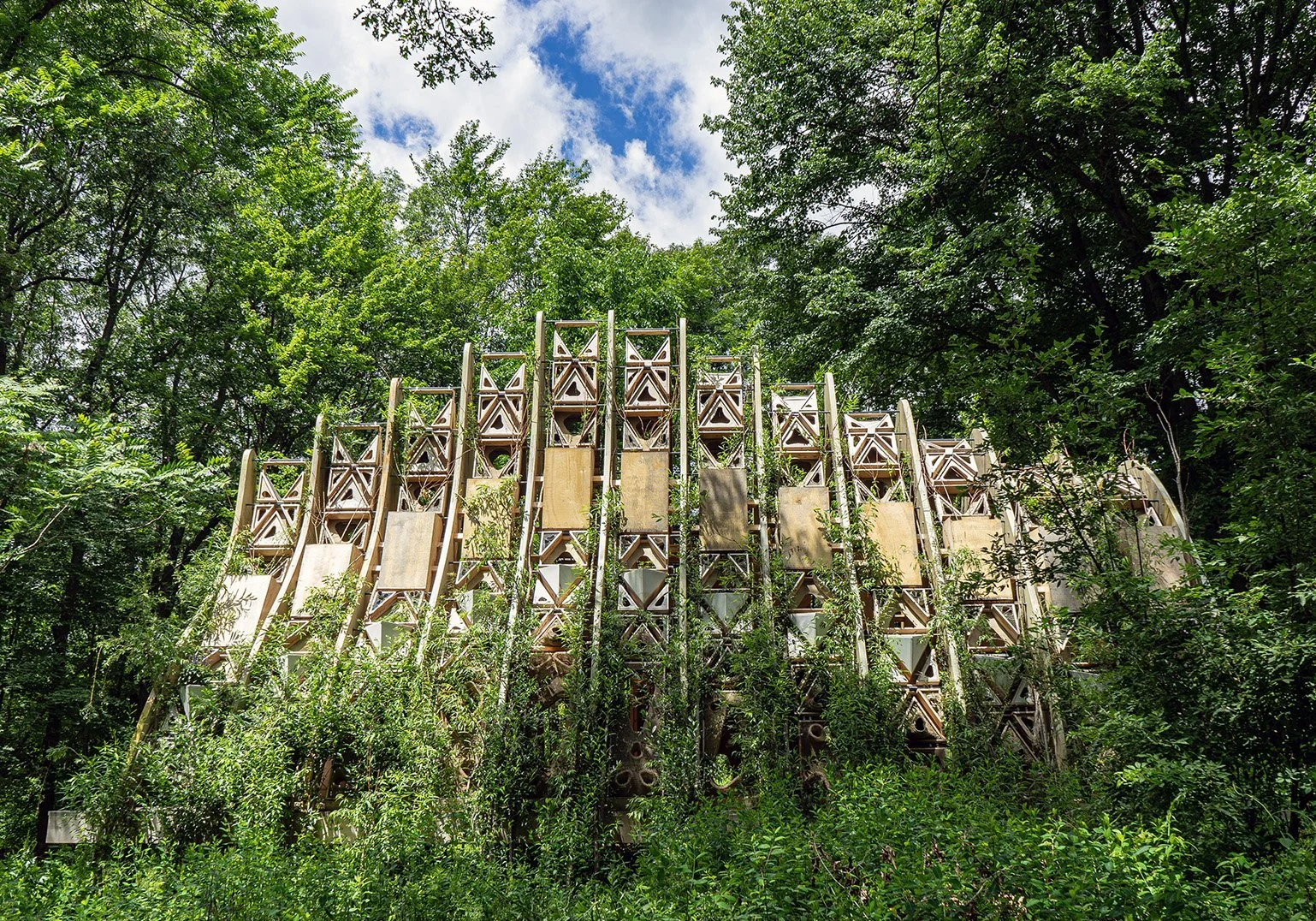

  • Fab Tree Hab's First Summer

    Willow trees sprouting in the summer of 2024 along a facade of multispecies habitat and planter modules that feature willow guiding channels to mold their growth overtime.

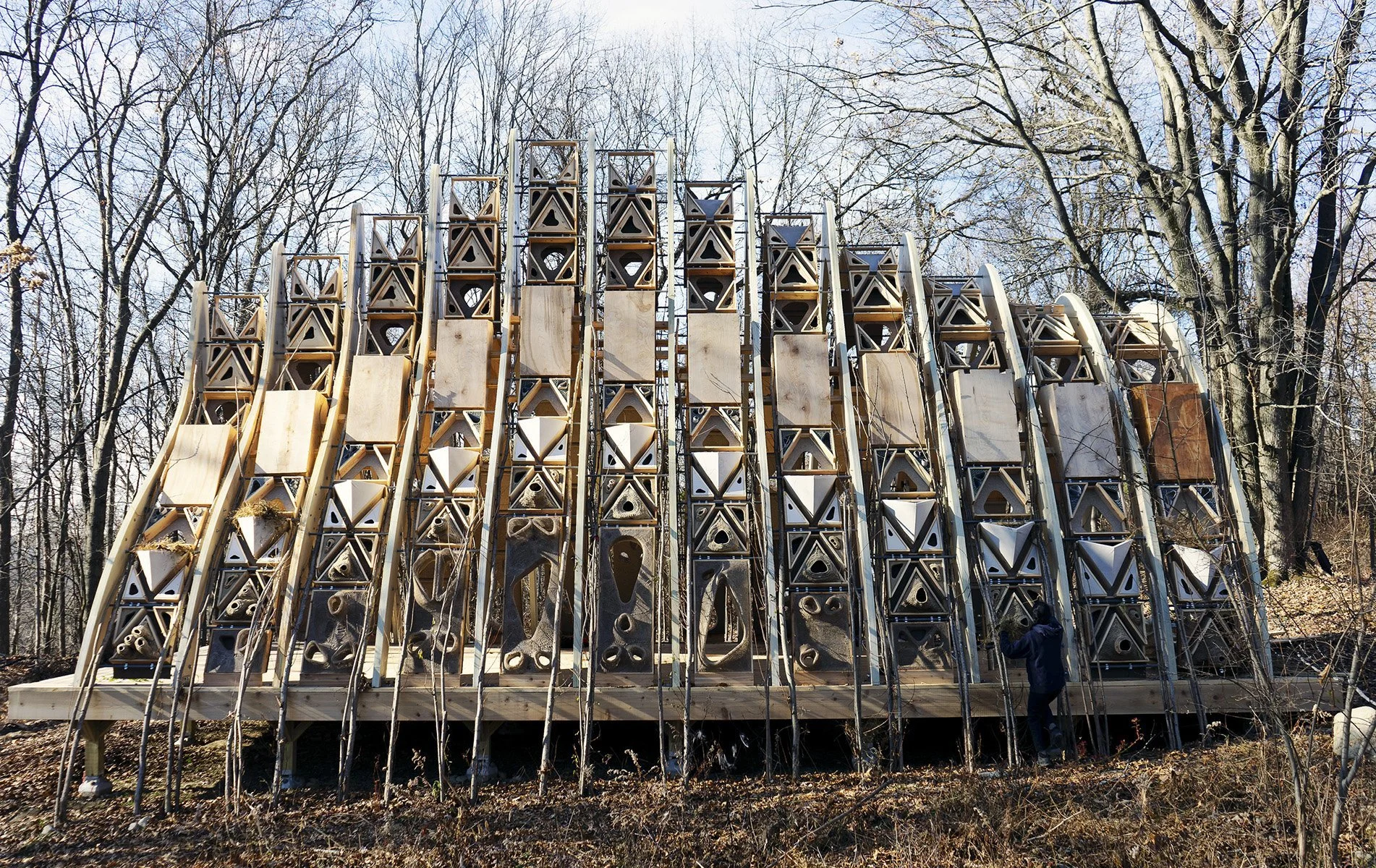

  • Fab Tree Hab's First Winter

    2023

  • Living Village

  • A Terrestrial Reef

    New Windsor NY, USA

  • New List Item

    Description goes here

Gallery

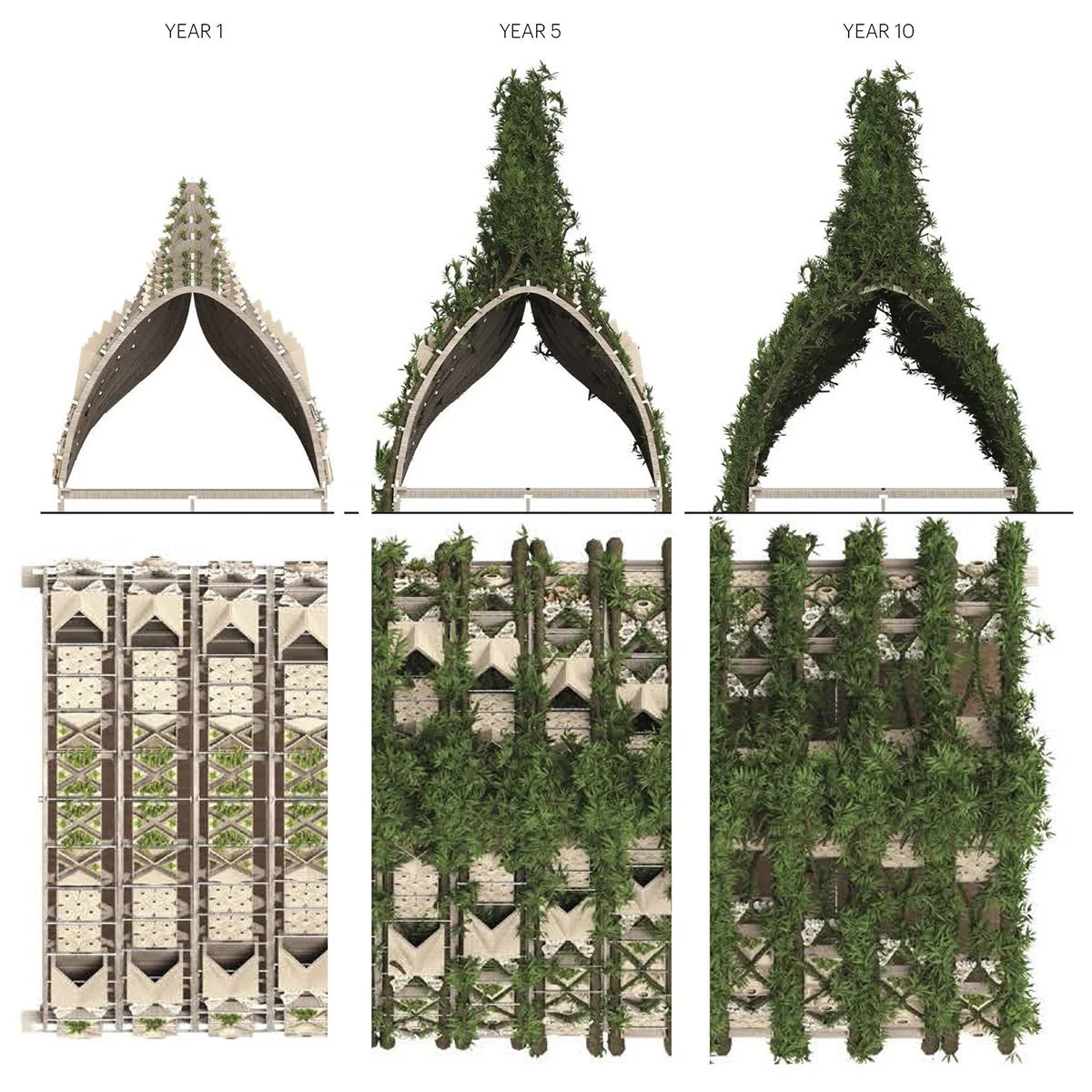

  • Structures Grow Stronger With Time

    Over time the willow trees will become the primary structure and the temporary scaffolding will be removed.

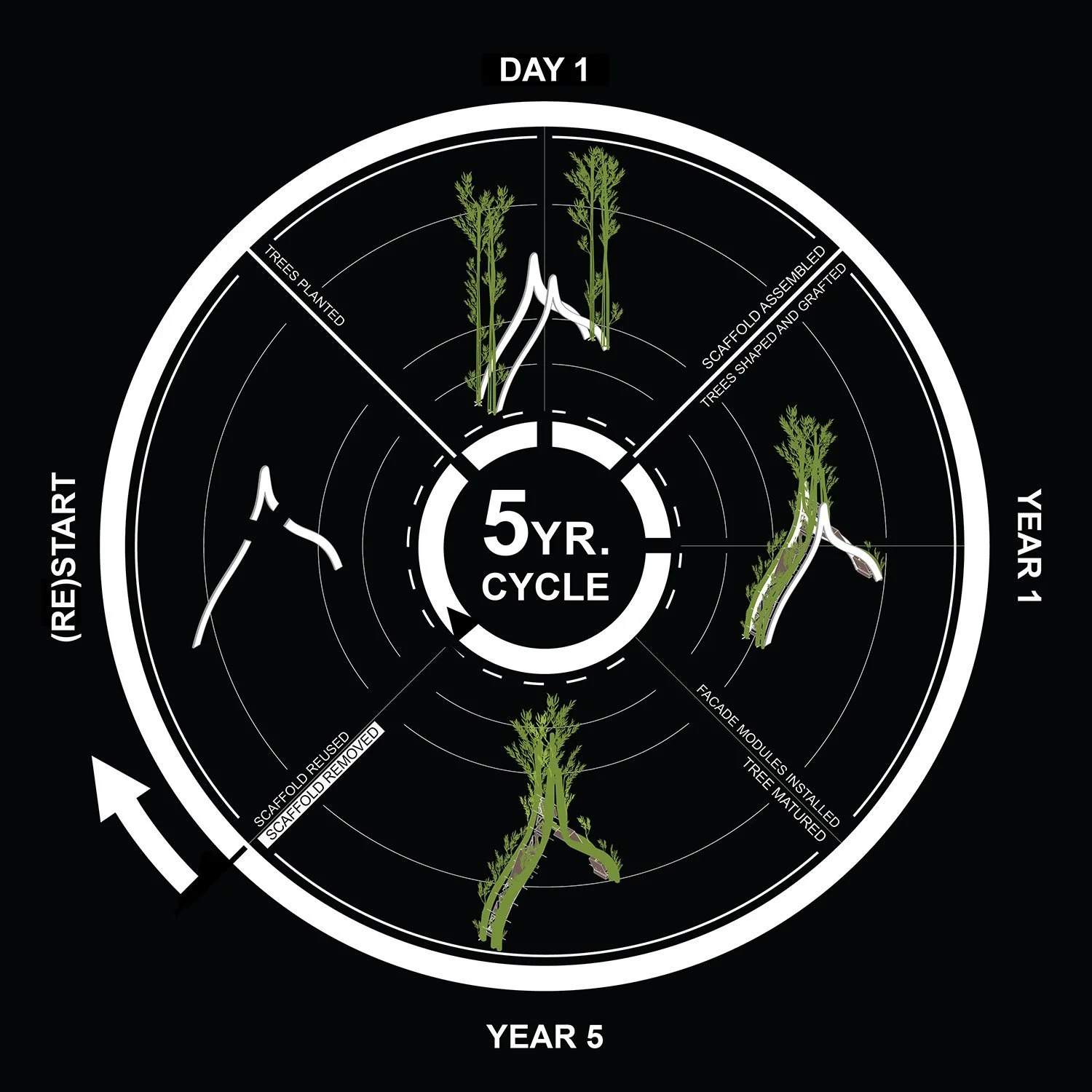

  • Lifecycle

    CLT scaffolds shape trees and can be dismantled and reused when the trees mature.

  • Grafting Process

    Grafting is a horticultural technique whereby tissues of plants are joined so as to continue their growth together. The success of this joining requires that the vascular tissues grow together.

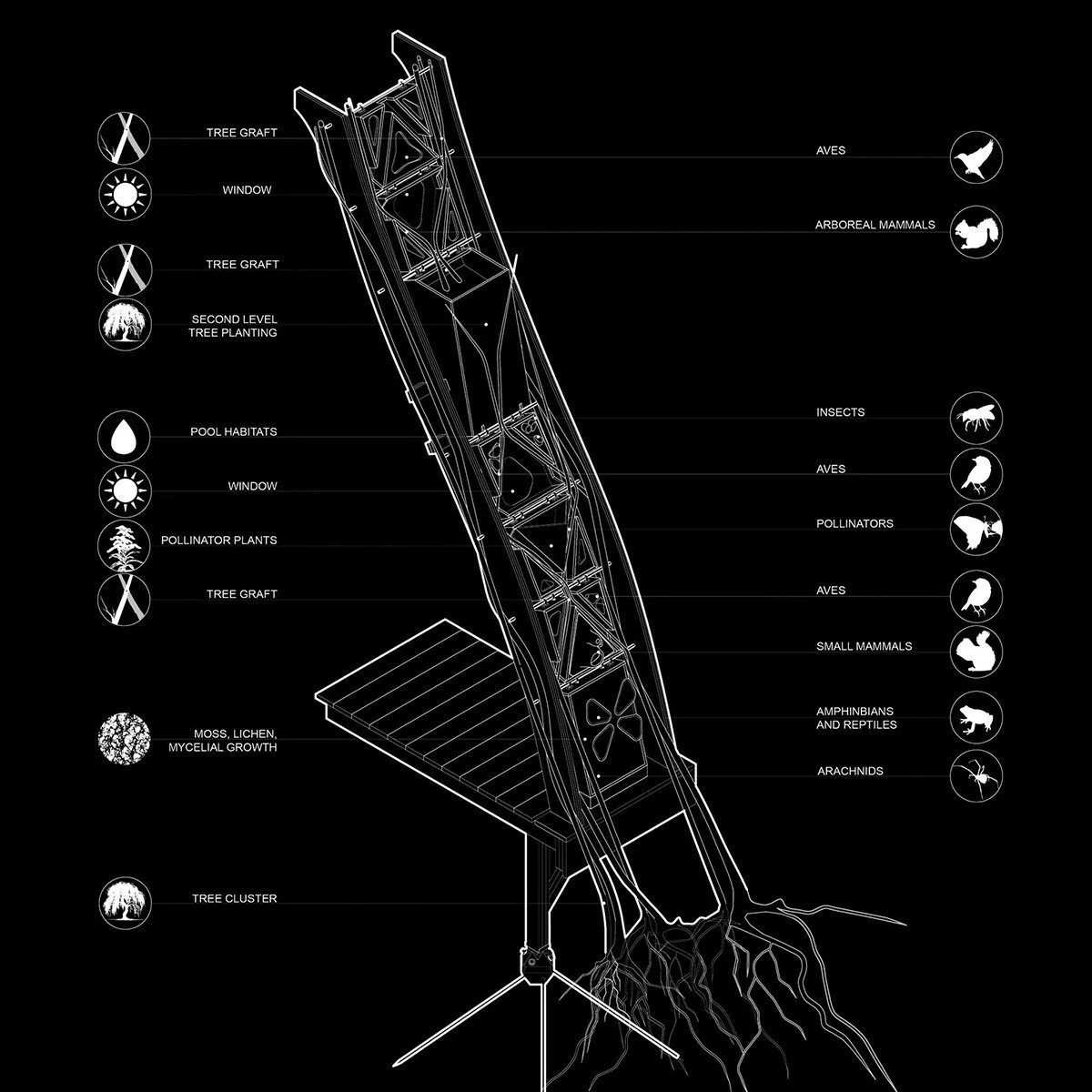

  • Creating Food Webs on Facade

    The willow guiding multispecies facade was designed to host all kingdoms of life.

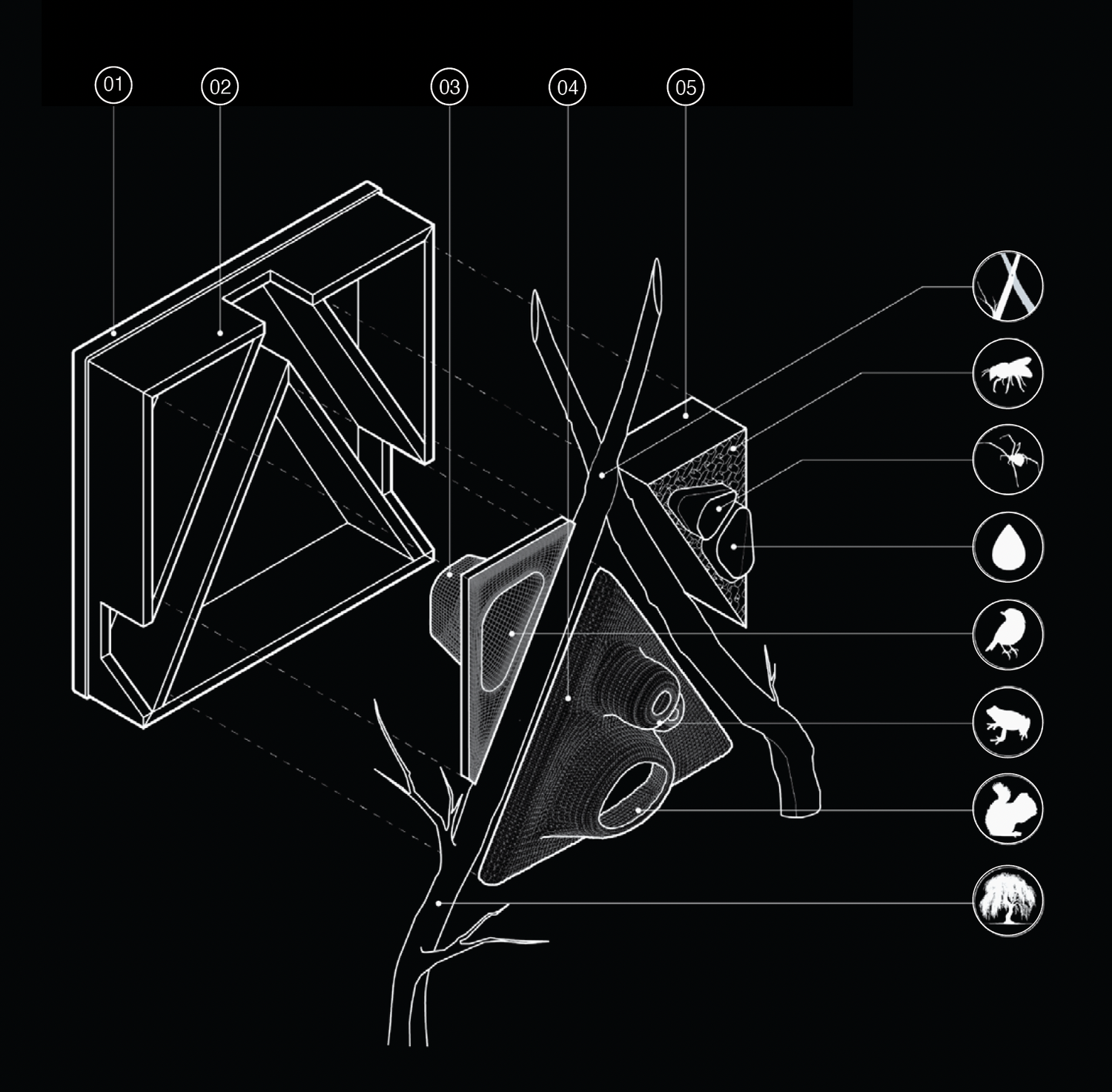

  • Multispecies Habitat Module

    01.Wool felt backplate, 02. Cedar frame, 03. Knit jute habitat insert, 04. Crocheted jute habitat, 05. 3D printed bioplastic habitat.

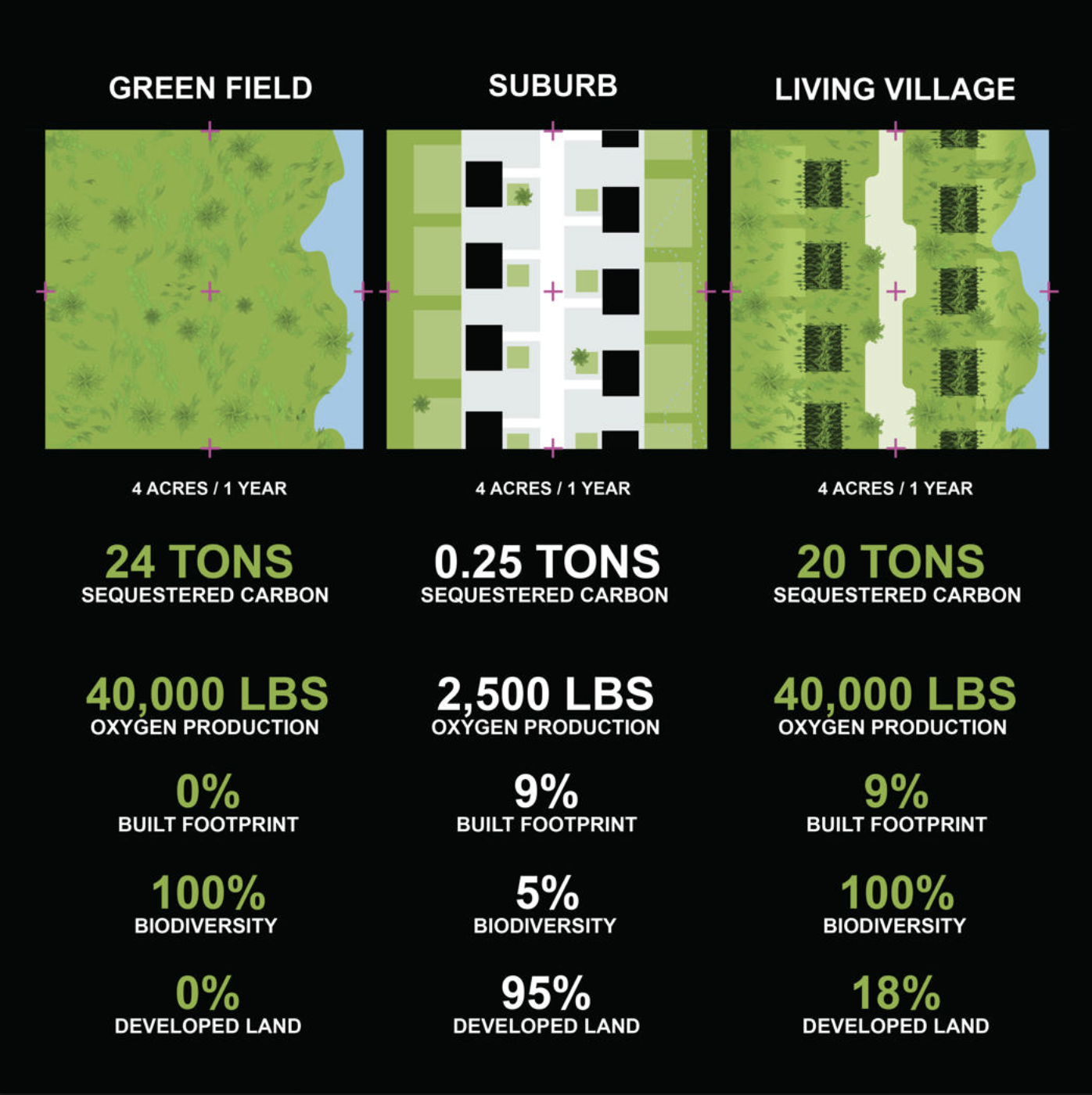

  • Living Village vs Suburbs

    Living architecture preserves biodiversity, sequesters carbon, and produces oxygen while leaving room for human programming.

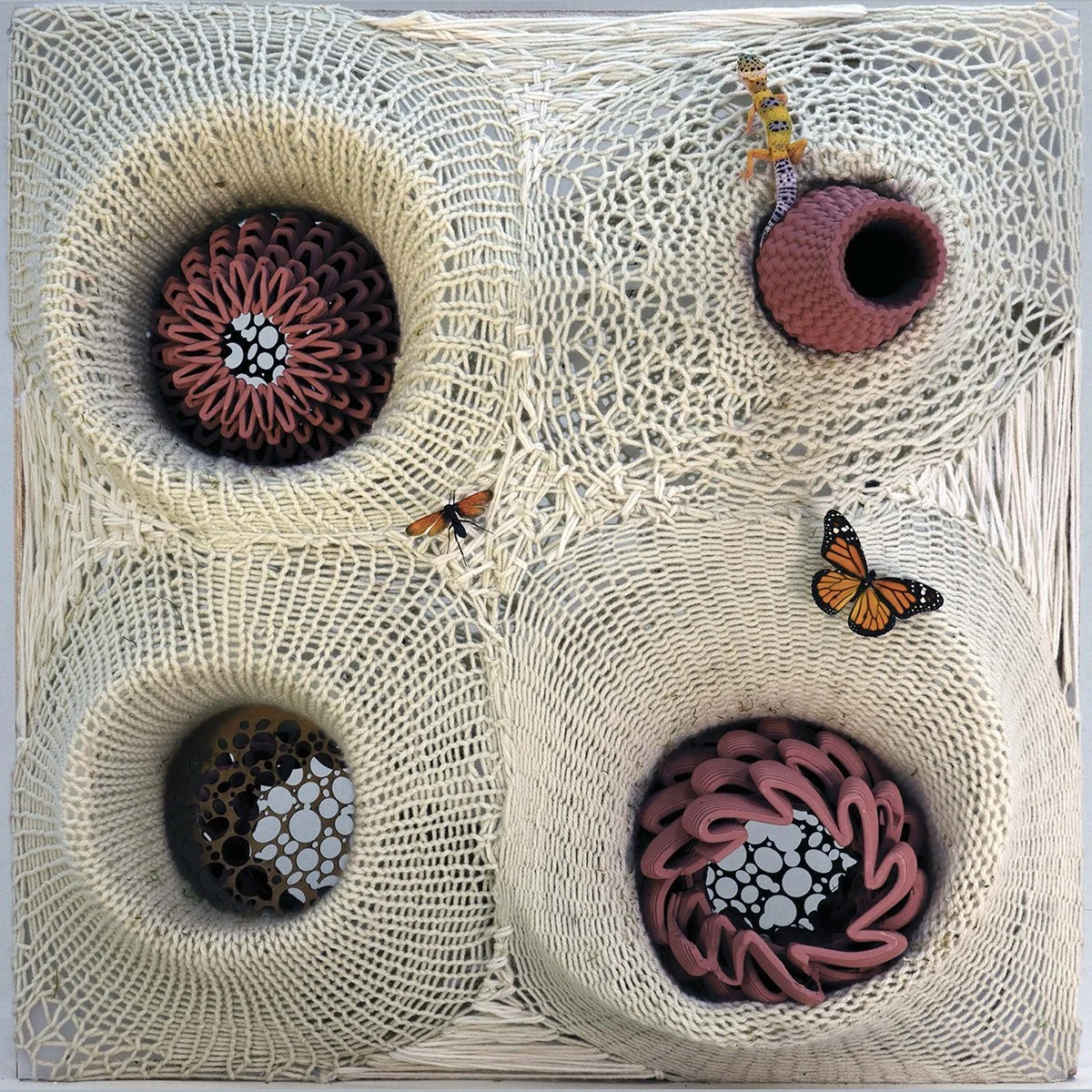

  • Early Prototype of Multispecies Modules

    Early Prototype of Multispecies Modules

    Experimenting with knit and 3D printed ceramic.

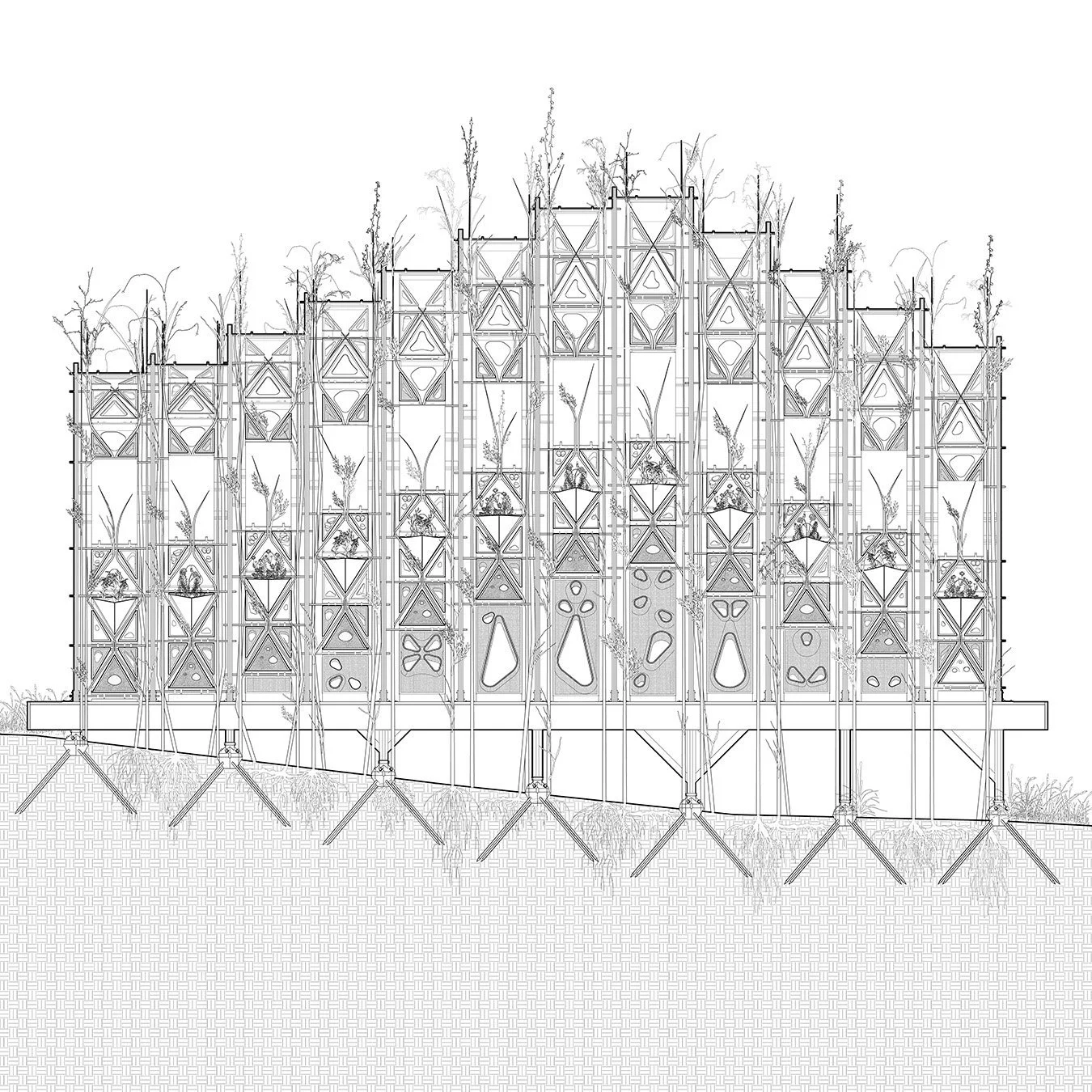

  • Side Elevation of Fab Tree Hab

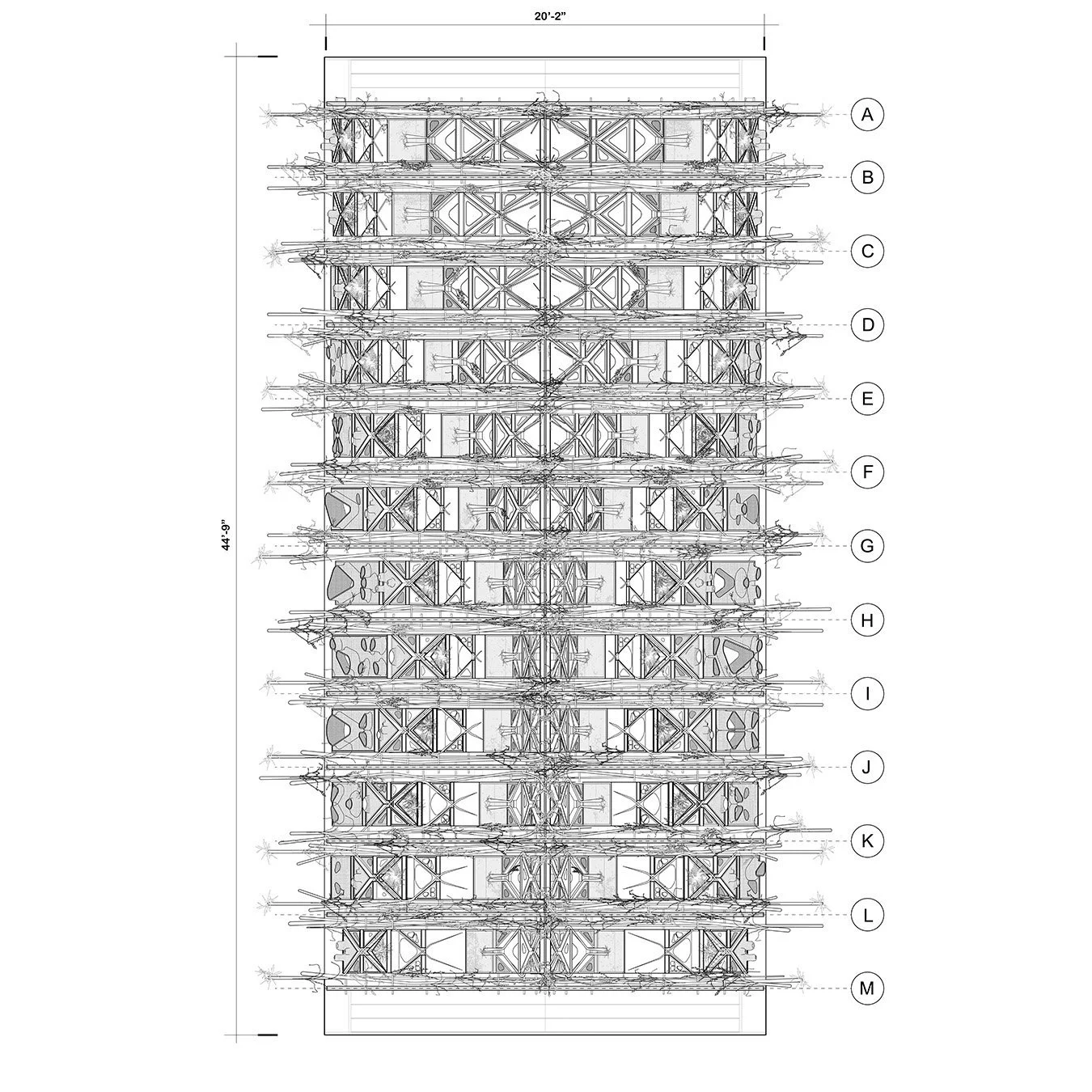

  • Plan of Fab Tree Hab

  • Multispecies Module

Process

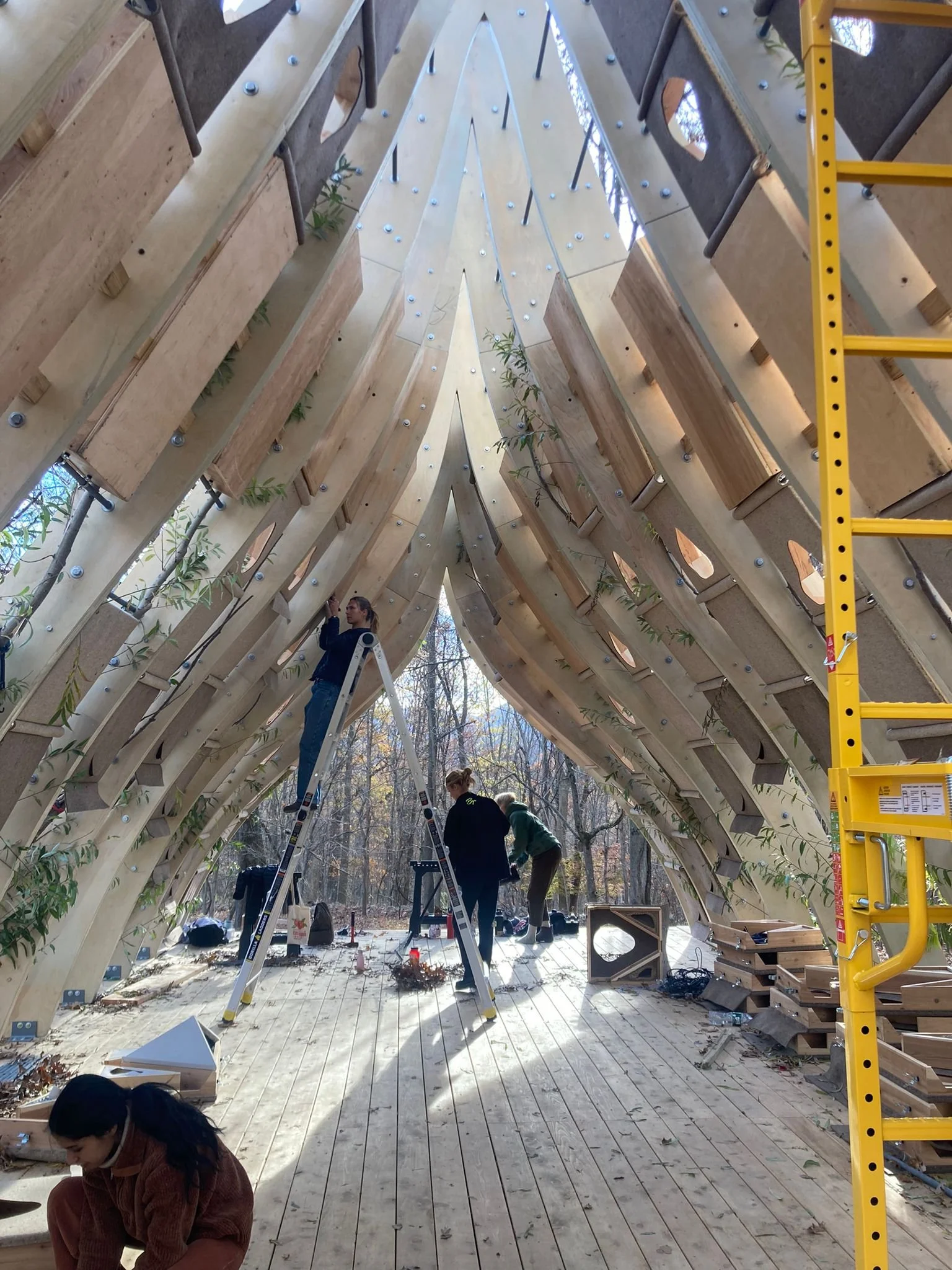

  • Installing multispecies modules

    We fabricated and installed 180 handcrafted multispecies habitat and planter modules onsite!

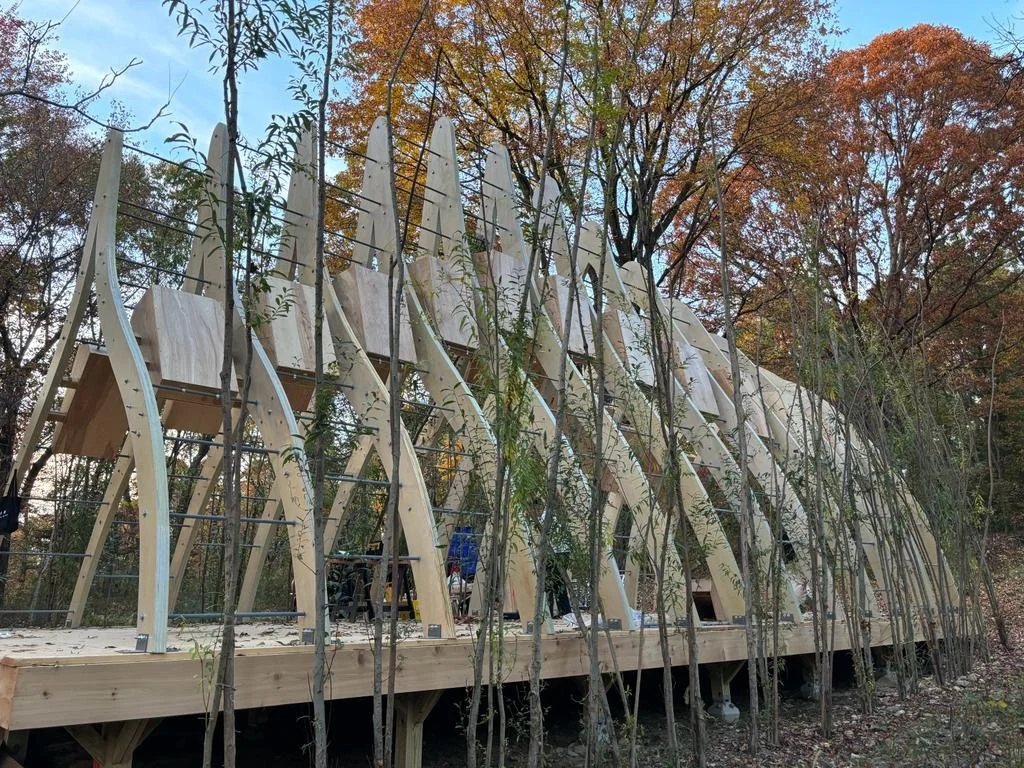

  • Weaving willows into the scaffold

    Willows harvested from the SUNY ESF Farm were planted along the structure and woven through metal bars on the computationally designed CLT arches.

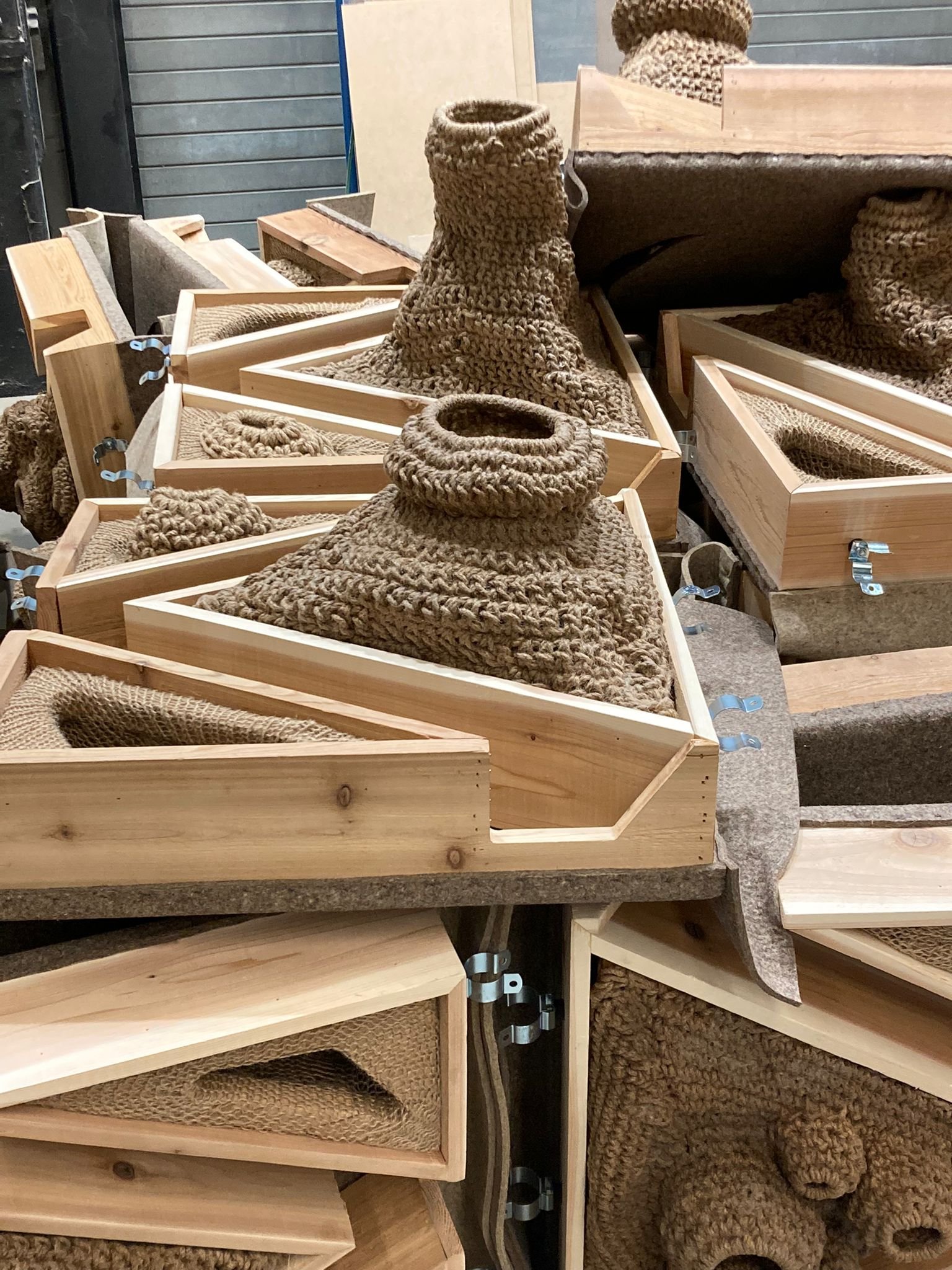

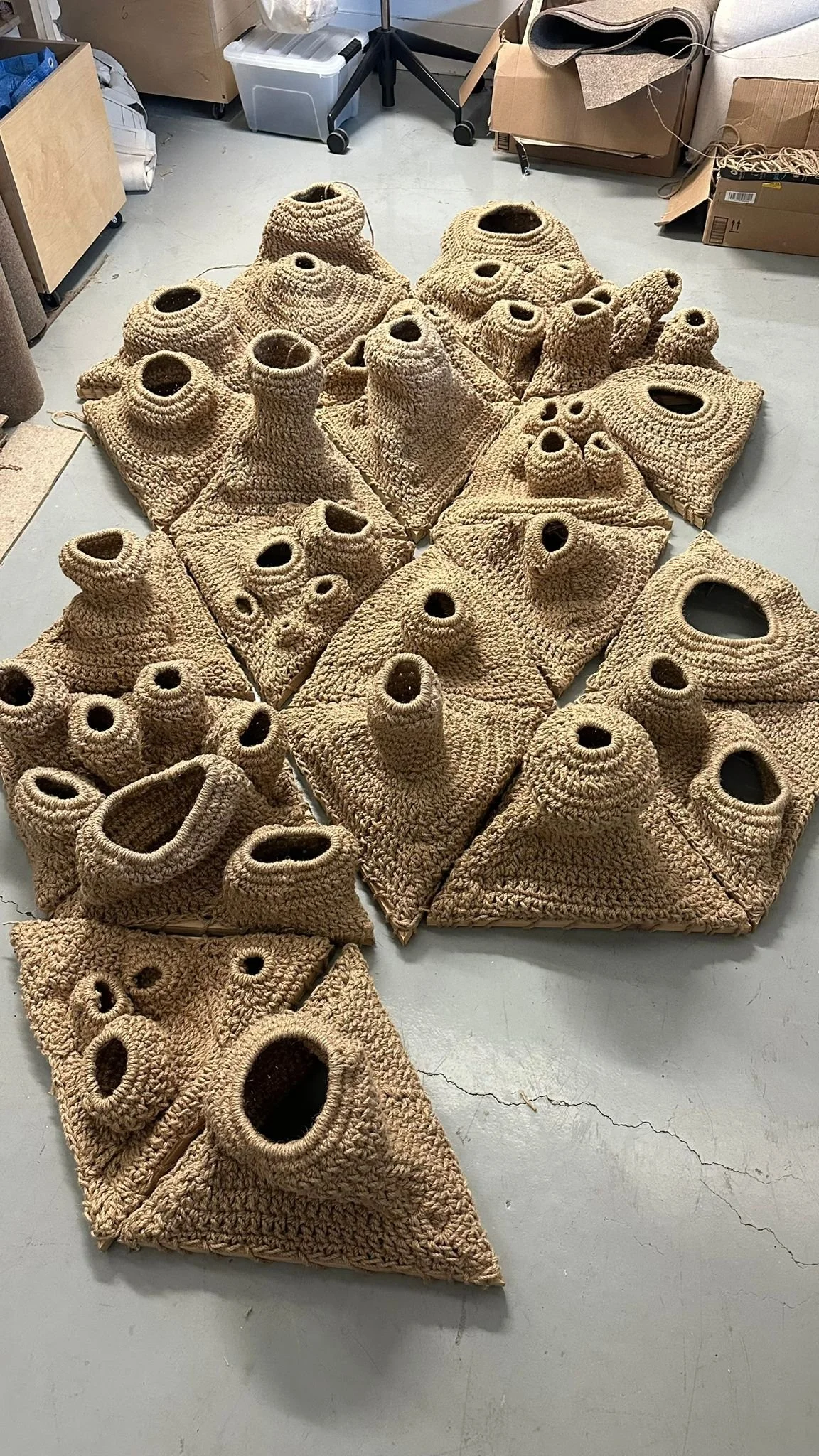

  • Crocheted jute habitats

    Jute rope was crocheted to produce dwellings for small mammals and birds. Coated with a custom formulation of pine rosins and natural waxes for added weather resistance.

  • Multispecies facade modules

    170 multispecies facade modules were made to acomodate all kingdoms of life and fabricated using sustainable materials such as reclaimed cedar, wool felt, jute, canvas and bioplastics.
